Garden Base

A B&Q Wooden Shed Installed On A 10ft x 8ft Plastic Shed Base

This case study comes to us from Jeanette and her husband who were looking to install a wooden shed for storage at their school on behalf of Friends Of Grangefield School. They purchased a 10ft x 8ft shed from B&Q and began research for a suitable foundation that could be installed and be put to use immediately but without compromising on strength and other benefits.

Selecting a Plastic Shed Base

After a little research online, they came across our website a found our range of fully recycled plastic shed bases. After reading up on the products many benefits, and easy installation they placed an order for the 10ft x 8ft plastic shed base. It arrived 3 days later allowing her to start construction.

Installation Process

Jeanette and her husband began the installation as soon as possible. If you would like to find out how to install a Plastic Shed Base you can follow the steps and photos in this blog post.

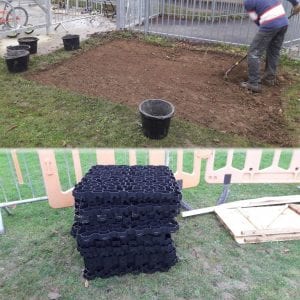

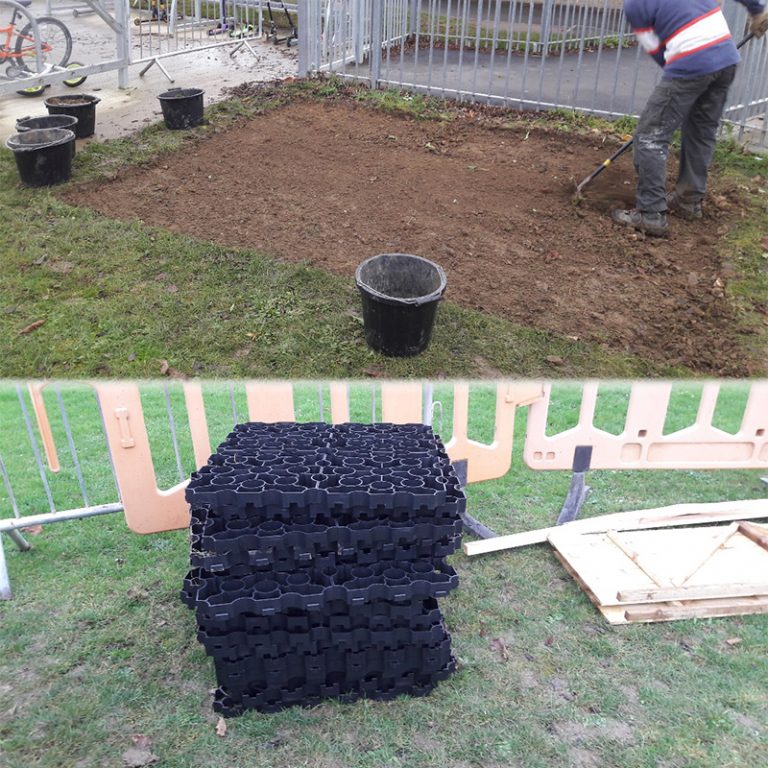

Firstly, they measured out a 10ft x 8ft area in the designated area of the school and marked it out. From there a layer of grass and soil was excavated leaving a soil base.

On to the soil, a layer of small gravel was used in order to create a sub bas. This gravel was then leveled and compacted down as well as possible using a plank of wood to ensure it created a strong flat surface.

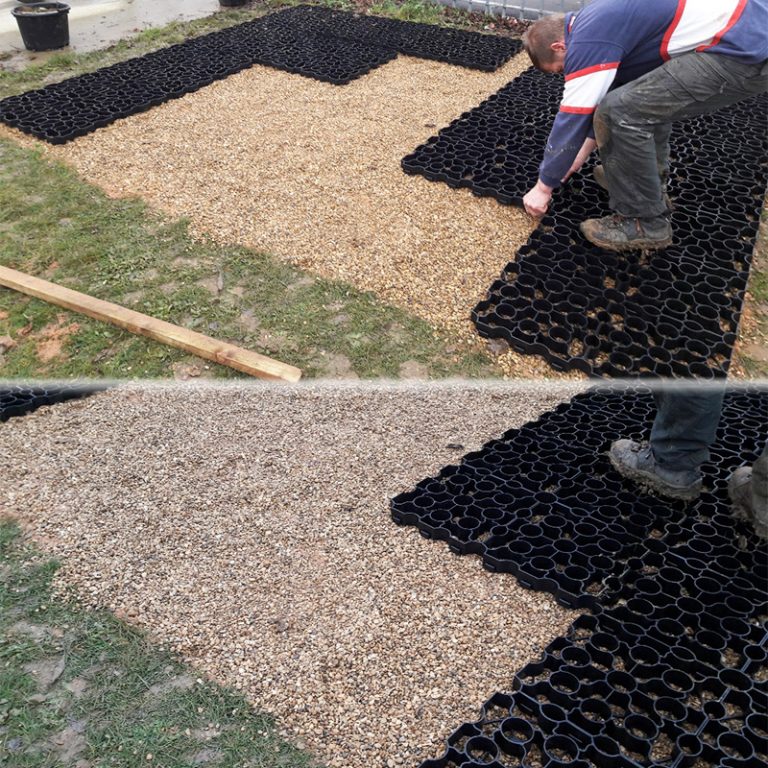

Next, they could install the Plastic Shed Base and Jeanette laid the base down 4 panels at a time and connected neighboring panels together using the specially designed slot and peg system. This process was repeated until the designated area was covered. This was completed quickly and easily.

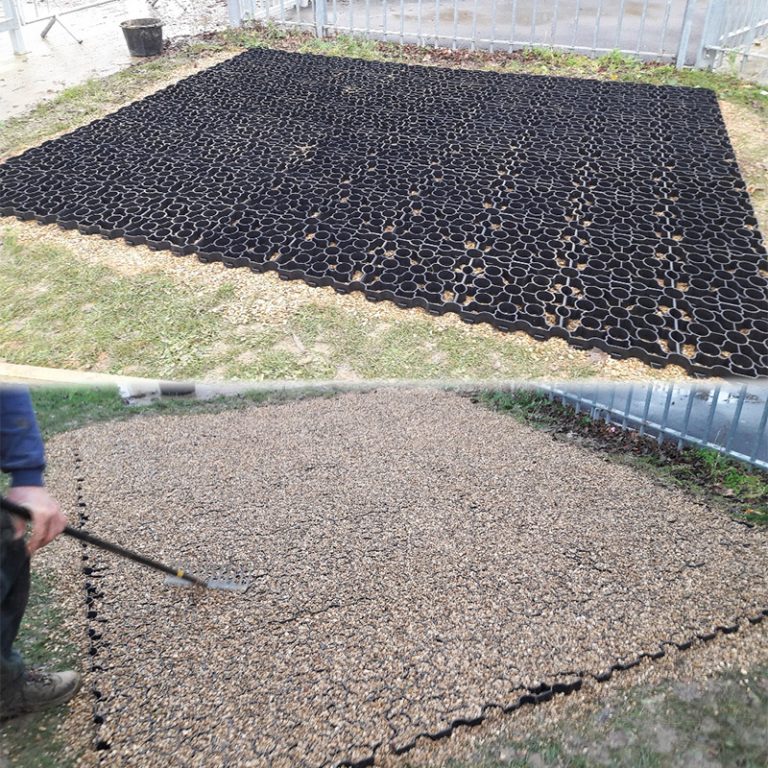

Now Jeanette and her husband filled the installed base with the same gravel they used on the sub-base. This took very little time. Around 8kg of gravel or aggregate is needed to fill each panel so you can work out how much is needed for the entire area.

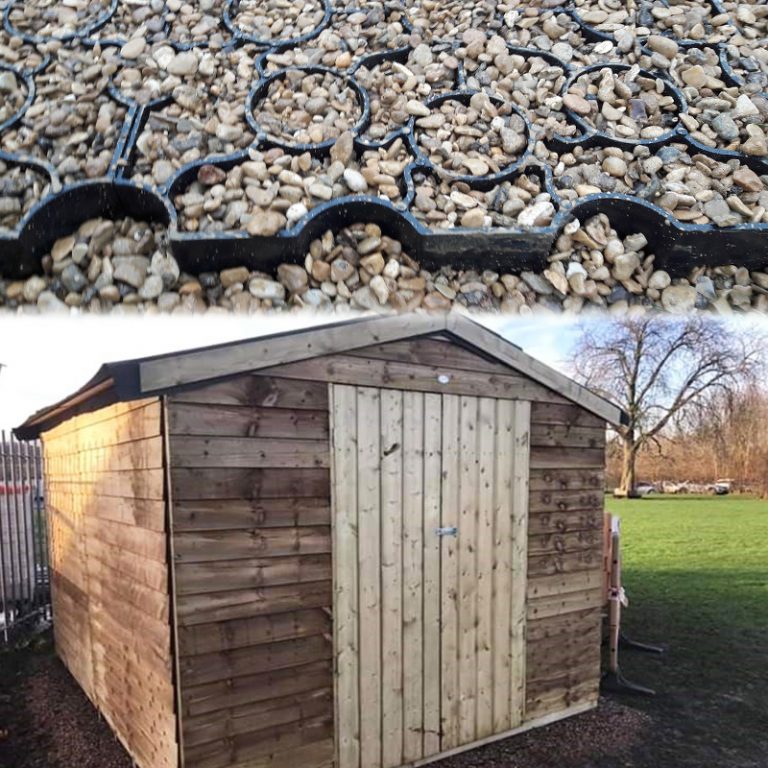

Finally, the shed was delivered and erected on the site so that they could start using it.


Jeanette is very happy with the final result and her shed will provide adequate storage and the base a strong foundation for many years to come.

Thank you to Jeanette and your husband for sharing your installation process of your Plastic Shed Base and allowing us to use your images to create this case study. If you have any photos of your installation or have any questions regarding our bases then please do not hesitate to contact us.
